LED Dimming Driver, 12-36V, 5A/Ch, 4 Channels
€48,90
Skip to product information
LED Dimming Driver, 12-36V, 5A/Ch, 4 Channels
€48,90
14-day right of withdrawal under EU consumer law
Shipped from our EU warehouses
Delivery across the Baltics, Finland and Sweden
LED Dimming Driver, 12-36V, 5A/Ch, 4 Channels by Optonica — quality European LED lighting.
- IP20 rated
- Dimmable
- 2-year warranty
Technical specifications
| Product code | AC2-A3 |
| Dimmable | Yes |
| Input voltage, V | DC12-36 |
| Power grid frequency, Hz | Irrelevant |
| Power factor | Irrelevant |
| Energy consumption, kWh/1000h | 720 |
| Ingress protection | IP20 |
| Ambient temperature, °C | -30 / +55 |
| Product material | Plastic, Aluminium |
| Body color | White |

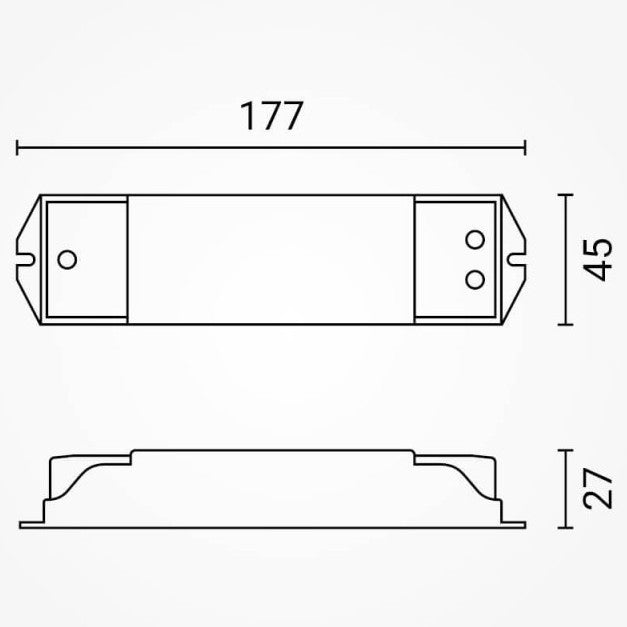

| Size of package, mm | 178x50x38 |
| Warranty, Year | 2 |
| Manufacturer | OptonicaLED |
| Brand | Optonica |
| Power, W | 4x(60-180) |
| Supply current, A | 20 |
| Output voltage, V | 4x(DC12-36) |
| Output current, A | 4x5 |
| Output type | Constant voltage |
| Output Connection Mode | Common anode (+) |
| Number of Channels | 4 |
| Dimming Control Type | 0-10V, Push |
| Wireless Control | No |
| Wireless Control Type | Irrelevant |
| Gross weight, g | 144 |
| Net weight, g | 124 |
| Supply current, from...to, A | >12…20 |
