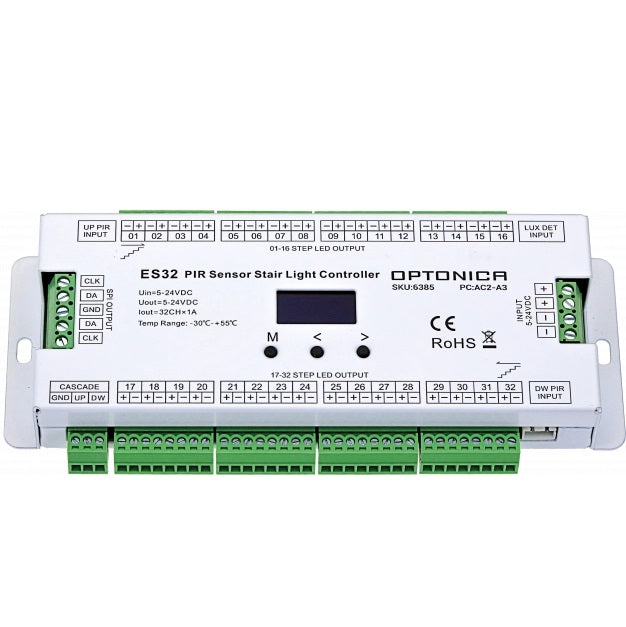

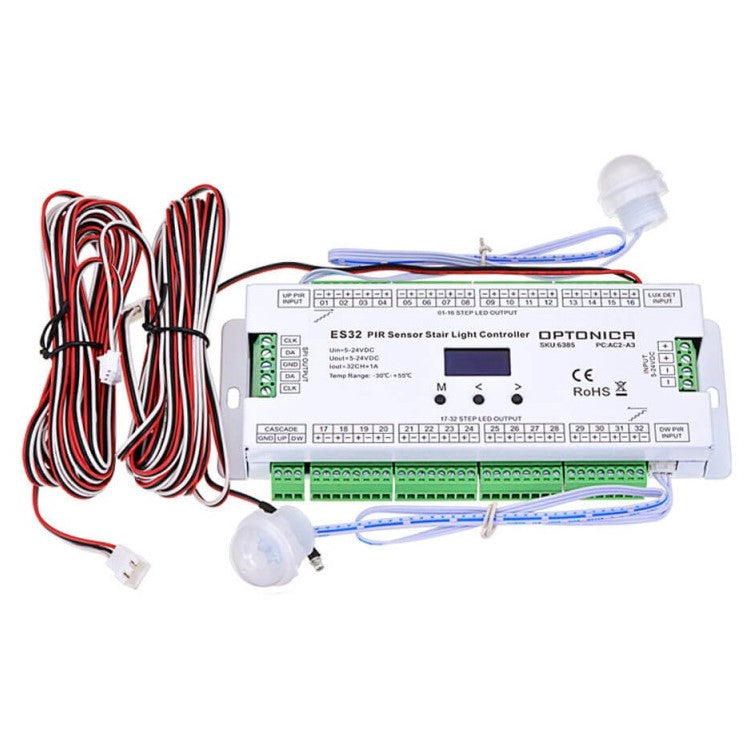

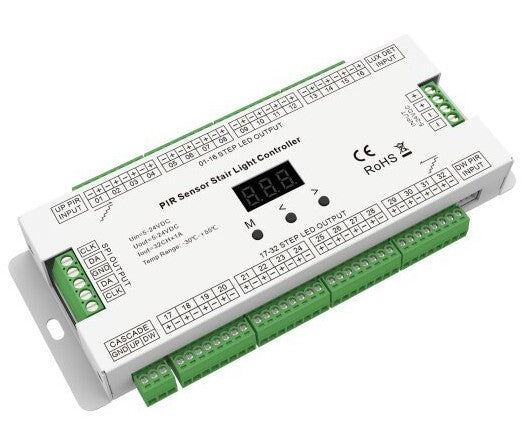

LED PIR Sensor Stair Light Controller, 5-24V, 5A/Ch, 32 Channels
€159,90
Skip to product information
LED PIR Sensor Stair Light Controller, 5-24V, 5A/Ch, 32 Channels
€159,90
14-day right of withdrawal under EU consumer law
Shipped from our EU warehouses
Delivery across the Baltics, Finland and Sweden
LED PIR Sensor Stair Light Controller, 5-24V, 5A/Ch, 32 Channels by Optonica — quality European LED lighting.
- IP20 rated
- Dimmable
- 2-year warranty
Technical specifications
| Product code | AC2-A3 |
| Dimmable | Yes |
| Input voltage, V | DC5-24 |
| Power grid frequency, Hz | Irrelevant |
| Power factor | Irrelevant |
| Energy consumption, kWh/1000h | 768 |
| Ingress protection | IP20 |
| Ambient temperature, °C | -30 / +55 |
| Product material | Plastic, Aluminium |
| Body color | White |
| Warranty, Year | 2 |
| Manufacturer | OptonicaLED |
| Brand | Optonica |
| Power, W | 32x(5-24) |
| Output voltage, V | 32x(DC12-24) |
| Output current, A | 32x1 |
| Output type | Constant voltage + SPI |
| Output Connection Mode | Irrelevant |
| Number of Channels | 32 |
| Dimming Control Type | PWM, SPI |
| Wireless Control | No |
| Wireless Control Type | Irrelevant |
| Wireless Control Distance, m | Irrelevant |
| LED strip type | Irrelevant |
| Other properties | Sensor angle: 120°, distance: <3 m |
| Gross weight, g | 586 |
| Net weight, g | 534 |
